Multi Purpose P & A
These highly modular Print & Apply units are suitable for applications that require long reach for positioning a label on the front, side or corner of a product while it is moving on the conveyor or rotating around its own axis. The machine can successfully apply labels to a variety of products. Pallets, carton boxes, paper and plastic bags for bulk products, jumbo rolls of paper and other rolled products, drums, barrels, etc.
These systems present a true automated operation of the Print & Apply technology by being capable of real time communication with a PLC and/or PC.
Features:
- Left and Right hand systems
- Hand wheel or powered vertical adjustments
- Diagnostic/Configuration software
- Extended control package
- Touch screen controller for user interface
- External 16" O.D. label roll Power Unwind with the option of splicing on "the fly"
- This system can accommodate a variety of thermal printers: Zebra, Datamax, TEC, Sato, Intermec, Monarch, etc.
- Optional printer low web/full rewind, beacon indicator, and available I/O.
Print and Apply Vacuum Drum single axis (VDR-1Axis) for case and pail labelling.
Print and Apply Vacuum Drum double axis (VDR-2Axis) for pallete labelling.
"Off the shelf" components are used. These are readily available from world renowned suppliers and distributors, or directly from Labelling Technologies.

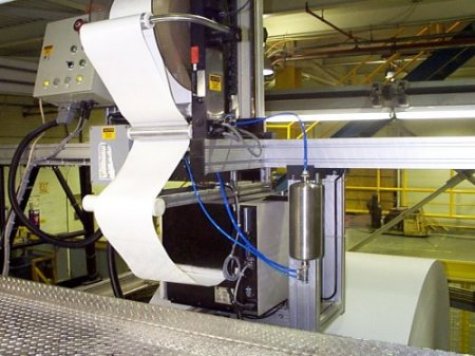

VDR system printing and applying 8-1/2"Wx17"L labels to the BOTTOM of stretch-wrapped jumbo rolls of paper.
