MUTT-120 Electric Label Dispenser
This extremely simple unit has brought satisfaction to the most demanding customers. Added to a semi-automatic production line environment, the MUTT-120 will improve labelling rates output and operator consistency. The industrial label dispenser aids in simplifying labelling jobs, while dramatically improving productivity at a minimal cost. This dispenser reduces label waste and makes disposal neat and orderly by re-rolling the waste backing, making for a cleaner, safer workplace. This unit also functions very well with fully automatic lines, acting as a backup unit.
Technical Specifications:
- Weight - approx. 7kg (17lb)
- Dimensions - H310mm (12") x W420mm (16.5") x L390mm (15")
- 12mm (1/2") and 16mm (3/4") dia. stainless steel shafting
- Blue anodized aluminum
- Highly resistant gray PVC enclosure
- Heavy duty polycarbonate guide disks
- Durable A.C. motor
- Adjustable micro switch
- Web hold-down device
- Detachable power cord
- Fuse drawer with spare fuse, 2 amps
- Ontario Hydro inspected and approved
Label Specifications:
- Label web width of 150mm (6")
- Roll dia. of 250mm (10") on 76mm (3") cores
- Dispenses multiple-across labels, die-cut or butt-cut
- Includes unwind and rewind

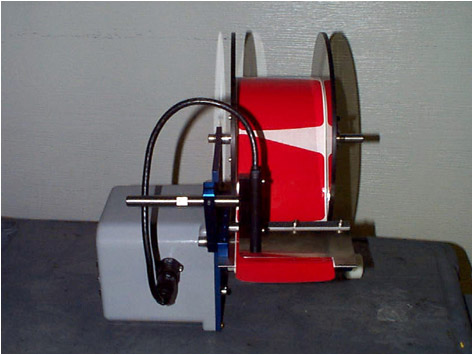

MUTT-120
with Photoeye.
MUTT-120
with Micro Switch.

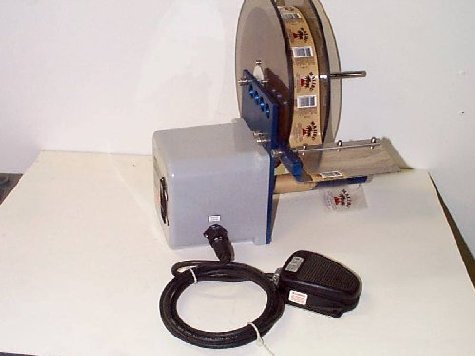

MUTT-120
with Foot Pedal.
MUTT-200 with Microswitch - electric dispenser with 8" (200mm) wide label capacity.
